Netzwerkanalyse

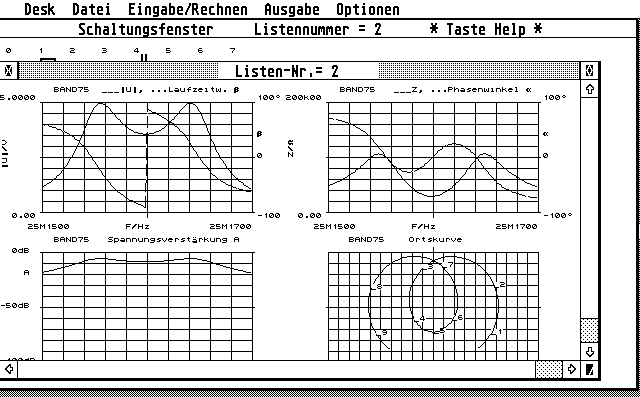

Networks of coils, capacitors and ohmic resistances, as they are often found in electrical engineering (especially in the 2nd semester of electrical engineering ;-)) The calculated values can be displayed in tabular and graphical form and can also be printed out via GDOS. The frequency responses of output voltage and resistance, of delay angle, phase angle and locus curve are output. The networks can be put together graphically.

Information

Version/Release date: 3.04 10/03/1996
Systems: TOS compatible
Status: Freeware
Programmer Hans Georg Müller
Compatibility: ◆ ST ◈ STE ◈ TT ◈ Falcon ◈ CT60
◈ Hades ◈ Milan ◈ FireBee
Resolutions: all
Supports: GDOS
Programming Language: Pure Pascal
Language: German

Availability

Availability: ST-Computer PD 917 (Missing) ST-Computer PD 917 (Netzwerkanalyse) , Atari Inside PD 233[?] (Netzwerkanalyse 3.03)
